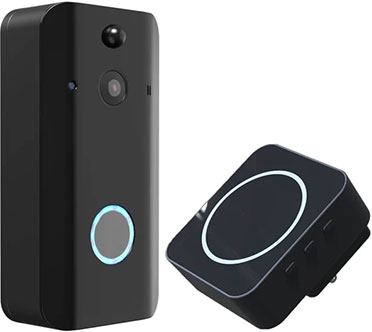

Design ango-doorbell-specs.jpg

Doorbell Dimension: 5.1in. X 2.5in. X 1.5in. (130mm X 66mm X 38mm)

Chime Dimension: 2.7in. X 2.5in. X 1.5in. (70mm x 65mm x 40mm)

Color: Black

Power source

Powered by 2 x 18650 rechargeable Lithium-ion batteries or hardwired to existing doorbell system(AC 12~24V)

Battery capacity: 3.7V / 3350mAh

Recharge port: micro USB 5V/1A

Battery life: 6 months ( under normal usage of 10 events per day )

Camera

Image sensor: 1/2.7 inch CMOS

Video resolution: FHD 1080P 30FPS

Video Compression: H.264

Focal Length: 3.6MM

F/N: 2.5

Field of view: 140°

Night Vision: 6 x 850mm infrared LED

PIR sensing distance: 10ft (3m)

Working Environment

weather-resistant, 14℉ ~ 122℉ (-10℃ to 50℃)

Audio

Two-way talk with Φ28mm 8Ω/0.5W Speaker and Sims Mic

Connectivity

WiFI 802.11b/g/n 2.4GHz

APP

compatibility: IOS, Android 4.0 or later

Storage

Cloud storage supports up to 28-day video history

In the Box

1 x doorbell

1 x indoor chime with WiFi extender

1 x wall plate

1 x USB charge cable

2 x batteries

Wall anchors

Screws

1 x screwdriver

1 x user manual
